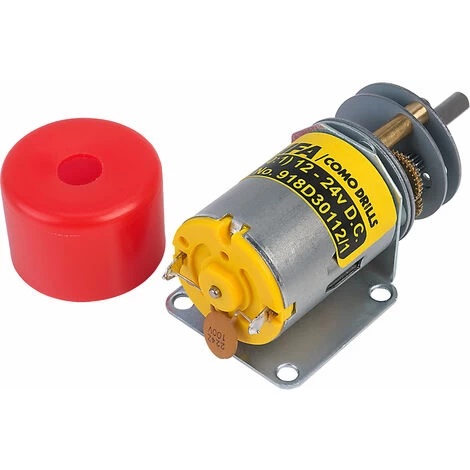

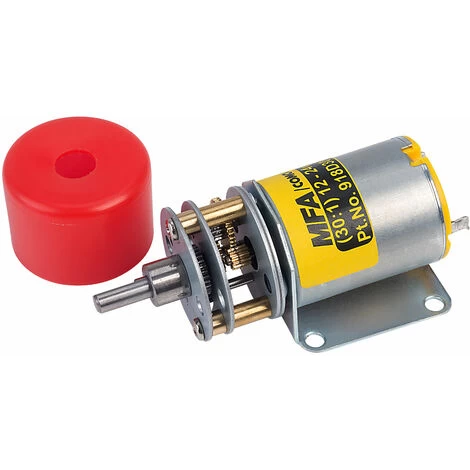

MFA 918D30112/1 Gearbox And Motor 30:1 4mm Shaft 12-24V

Single ratio metal gearbox with 30:1 gear ratio and 12 to 24V voltage rating, suitable for a host of model and light industrial applications. These gearboxes are constructed from steel and brass and housed in a protective plastic cover which prevents ingress of dust and dirt and protects the user against accidental contact with the gears. The motor is fitted with a bracket with four fixing holes for easy mounting to a flat surface.

A voltage regulator employing pulse width modulation is also available, allowing infinitely variable motor rpm to be set.

• 1.62W power rating
• 8400rpm no load speed
• 6300rpm maximum speed
• 0.30A load current
• 25g/cm maximum continuous torque
• 100g/cm stall torque
• 25mm diameter, 4mm shaft diameter, 62.5mm long
• 72g weight
• MFA/COMO 918D/1 series
